ROTARY SCREW COMPRESSORS

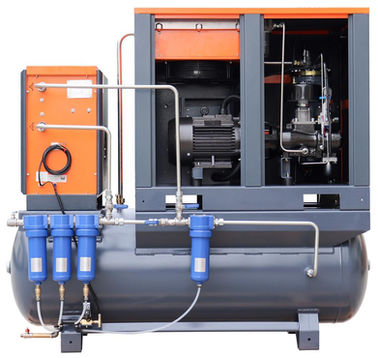

Rotary Screw Compressor
Our Rotary Screw Compressors are a reliable and efficient solution for all your industrial compressed air needs. With their advanced rotary screw technology, these compressors deliver high-volume air output with minimal noise and vibration, making them ideal for use in various industrial applications.
The compact design and low maintenance requirements of these compressors make them a cost-effective choice for businesses looking to optimise their production processes. The user-friendly control panel allows for easy monitoring and adjustment of operating parameters, ensuring maximum productivity and efficiency.
Technical Parameters | LW-20PM-16Q | LW-30PM-18Q |
---|---|---|
Refrigerant Air Dryer | 220 ~ 240V / 50Hz | 220 ~ 240V / 50Hz |
Air Filters | 3 filtration grade, 4pcs | 3 filtration grade, 4pcs |
Laser Cutter Adaptor | 3000 ~ 6000W | 8000W above |
Air Tank Capacity (litres) | 500 | 500 |
d(B)A | 68±2 | 72±3 |
Air Outlet Port Size | G3/4 | G1 |
Weight (kg) | 690 | 720 |
Dimension (LxWxH) (mm) | 1950 x 950 x 1690 | 1980 x 1040 x 1880 |
Volt./Ph./Hz. | 380~400V/ 3Ph / 50Hz | 380~400V / 3Ph / 50Hz |
Motor Power (kW) | 15 | 22 |
Max Exhaust Air Pressure | 16 bar | 18 bar / 16 bar |
F.A.D | 1.3m³/min | 1.6m³/min / 2.0m³/min |
